Ebara Paslanmaz Pompa JESX-M5

  • 0.0 - 0 Yorum var.
  • Ürün Kodu : JESX-M5
  • Marka : Ebara
AYNI GÜN KARGO
  • Stokta Var

  •
  • Kdv Dahil
    17.147,85 TL
  • Toplam Tutar
  • Havale Fiyatı
    17.147,85 TL
  • Taksitli
    1.604,90 TL - Taksit Sayısı 12
Sınırlı Sayıda Stok !
  • Adet :
Sepete Ekle
Ayni Gün Kargo içerisinde siparis verilirse, Ayni Gün Kargo yapilir.
Teknik Özellikler:

-  Kendinden emişli sentrifüj tiptir. Emişi 8 metredir

-  Pompa AISI 304  paslanmaz çelikten imal edilmiştir

-  İtalyan Malıdır

-  Monofazedir

-  0,37 kW 2900 rpm'dir

-  0,4 Hp

-  Emme: 1 "

-  Boşaltma : 1"

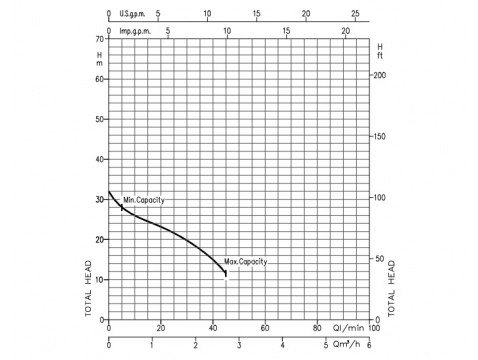

-  Litre / Yükseklik değerlerine göre kapasitesini aşağıdaki tablodan inceleyebilirsiniz.



JESX-JEX
Self-priming

SELF-PRIMING ELECTRIC PUMPS
in AISI 304

APPLICATIONS
• Supply of drinking water
• Domestic pressure boosting
• Small-scale garden irrigation
• Emptying reservoirs and swimming pools
• Moving clean water in general

TECHNICAL DETAILS
• Practical
• Easy to transport
• Light

PUMP TECHNICAL DATA
• Working pressure: 3,2 bar
• Maximum temperature of the liquid: 45°C
• Maximum suction depth: 8 m
• G1 suction connection for JESX, G1¼ for JEX
• G1 discharge connection

MOTOR TECHNICAL DATA
• High efficiency IE2 and IE3 motors starting from 0,75kW
• Self-ventilated 2 poles asynchronous motor
• Class of insulation F
• Protection degree IP54 (on request IP55)
• 230V ±10%, 50Hz single phase voltage,
230/400V ±10%, 50Hz three phase voltage
• Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
• Protection under user's responsibility for the three phase version

MATERIALS
• Pump casing and seal housing disc in AISI 304
• AISI 303 shaft (part in contact with the liquid)
• Impeller in AISI 304 for JEX, in PPE reinforced with fibreglass for JESX
• Mechanical seal in Carbon/Ceramic/NBR
• Bracket and motor casing in aluminium
